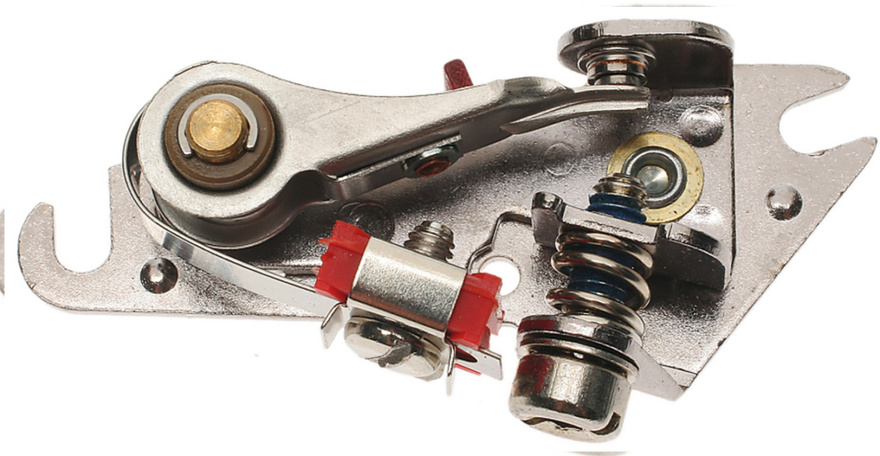

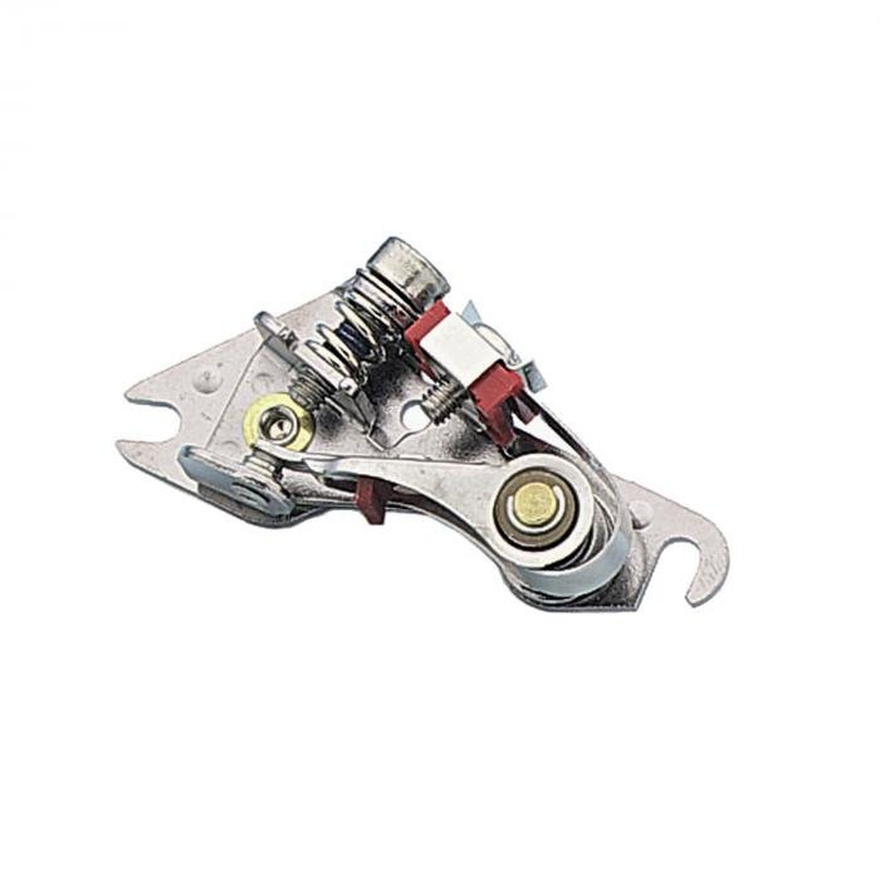

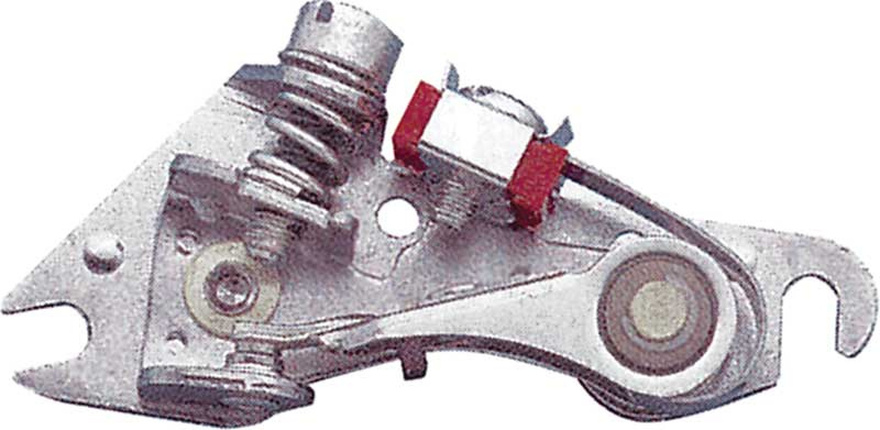

Vintage Points Ignition Contact Assemblies, commonly known as points and condenser systems, are essential components of the ignition system used in classic cars and motorcycles before the advent of electronic ignition systems. These assemblies are found in older vehicles, including iconic American classics like Pontiac, Ford, and Chevrolet models from the mid-20th century.
In essence, this system operates mechanically to generate the spark required for combustion. It was the standard ignition method before the development of more modern, electronic alternatives.
Key Components of Vintage Points Ignition Contact Assemblies
These assemblies are composed of several critical parts, each playing a unique role in the ignition process:
Contact Points (Breaker Points):
Two metallic contacts that open and close to break the primary current flow.
The opening of these points generates a high-voltage spark from the ignition coil.
Lever Arm:
Connected to a cam mechanism that controls the opening and closing of the points.
The cam’s rotation triggers the movement of the lever arm, creating the spark.
Spring:
Keeps the contact points closed when the cam is not exerting pressure.
Ensures a quick return to the closed position for continuous operation.
Cam:
Rotates within the distributor, pushing the lever arm at specific intervals.
Responsible for timing the spark according to engine speed.
Condenser (Capacitor):
Absorbs the electrical surge when the points open.
Prevents arcing and reduces wear on the contact points, prolonging their life.
Video: Points and Condenser classic car ignition… What is it and how does it work?
How Do Vintage Points Ignition Contact Assemblies Work?
Understanding how these assemblies function can help in maintaining and troubleshooting them. The process is relatively straightforward but requires precision.
Closed Circuit (Points Closed)
When the contact points are closed, current flows through the primary winding of the ignition coil.
This current creates a magnetic field within the coil, storing energy.
Open Circuit (Points Open)
As the cam rotates and pushes the lever arm, the points open, breaking the current flow.
The sudden stop causes the magnetic field to collapse, inducing a high-voltage spark in the secondary winding of the coil.
The spark travels through the distributor to the appropriate spark plug, igniting the air-fuel mixture in the engine cylinder.
Role of the Condenser
The condenser’s primary function is to absorb the voltage spike that occurs when the points open, reducing arcing and preventing premature wear on the contact surfaces. Without the condenser, the points would erode quickly, leading to misfires and poor performance.
Advantages of Points Ignition Systems
Despite being largely outdated, vintage points ignition systems still offer some notable advantages:
Simplicity: The mechanical nature of the system makes it easy to understand and repair.
Low Cost: Parts are inexpensive and widely available, especially for classic car enthusiasts.
Originality: For car collectors, maintaining the original points system preserves the vehicle’s authenticity.
Ease of Maintenance: Regular maintenance, such as cleaning and adjusting the points, can keep the system in good working condition.
Common Issues with Vintage Points Ignition Contact Assemblies
Over time, the system can develop problems that affect engine performance. Here are the most common issues and their symptoms:
Worn or Pitted Contact Points:
Symptoms: Misfiring, rough idling, difficulty starting.
Solution: Clean or replace the points regularly.
Burnt Points:
Symptoms: Weak or inconsistent spark, engine stumbling.
Solution: Replace the points and inspect the condenser.
Faulty Condenser:
Symptoms: Rapid point wear, weak spark, frequent misfires.
Solution: Replace the condenser to protect the points.
Improper Point Gap:
Symptoms: Hard starting, engine hesitation, loss of power.
Solution: Adjust the gap using a feeler gauge to the manufacturer’s specifications.
Maintaining Vintage Points Ignition Systems
Proper maintenance is key to keeping these assemblies functioning efficiently. Here’s how to keep them in top condition:
Recommended Article
1. Regular Cleaning:
Use fine-grit sandpaper to clean the contact surfaces.
Ensure no debris remains between the points after cleaning.
2. Gap Adjustment:
Use a feeler gauge to set the gap to the correct specification (usually around 0.016 to 0.020 inches).
Improper gaps can cause weak sparks or missed ignition.
3. Lubrication:
Lightly lubricate the cam to reduce wear on the lever arm.
Avoid over-lubricating, as excess grease can contaminate the points.
4. Replacing Worn Parts:
Points and condensers are inexpensive, so replace them if they show signs of wear.
Regular inspection ensures reliable engine performance.
Why Do Some Enthusiasts Still Use Points Ignition Systems?
Despite the advent of electronic ignition systems, some vintage car owners and restoration enthusiasts continue to use points systems. The reasons are often tied to the desire for authenticity, ease of maintenance, and the unique driving experience that older ignition systems provide.
Many classic car shows and competitions value originality, making it essential for collectors to retain the factory-installed ignition components. Additionally, some owners appreciate the simplicity and hands-on approach required to maintain these systems.
Modern Alternatives: Are They Worth It?
Today, many classic car owners opt to upgrade to electronic ignition systems, which offer:
Better reliability: No points to wear out or gap to adjust.
Consistent spark: Improved engine efficiency and fuel economy.
Less maintenance: Minimal upkeep compared to mechanical points.
However, upgrading may detract from the vehicle’s original charm, making it a choice between convenience and authenticity.
Conclusion: Preserving the Vintage Spirit
Vintage Points Ignition Contact Assemblies are a testament to the engineering of a bygone era. While modern systems offer convenience and performance, the charm and simplicity of points ignition have their place, especially among classic car enthusiasts.
Understanding how these assemblies work and maintaining them properly ensures that your vintage vehicle runs smoothly and retains its authentic feel. Whether you choose to maintain the classic points system or upgrade to electronic ignition, the key is to appreciate the unique character that vintage cars bring to the road.
